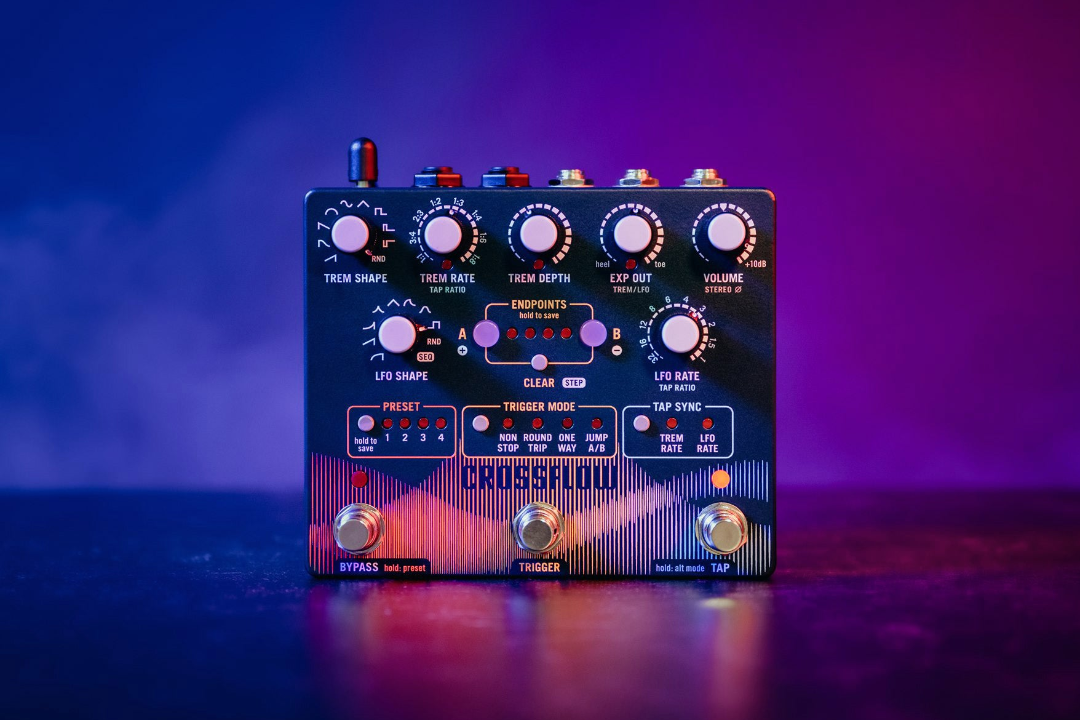

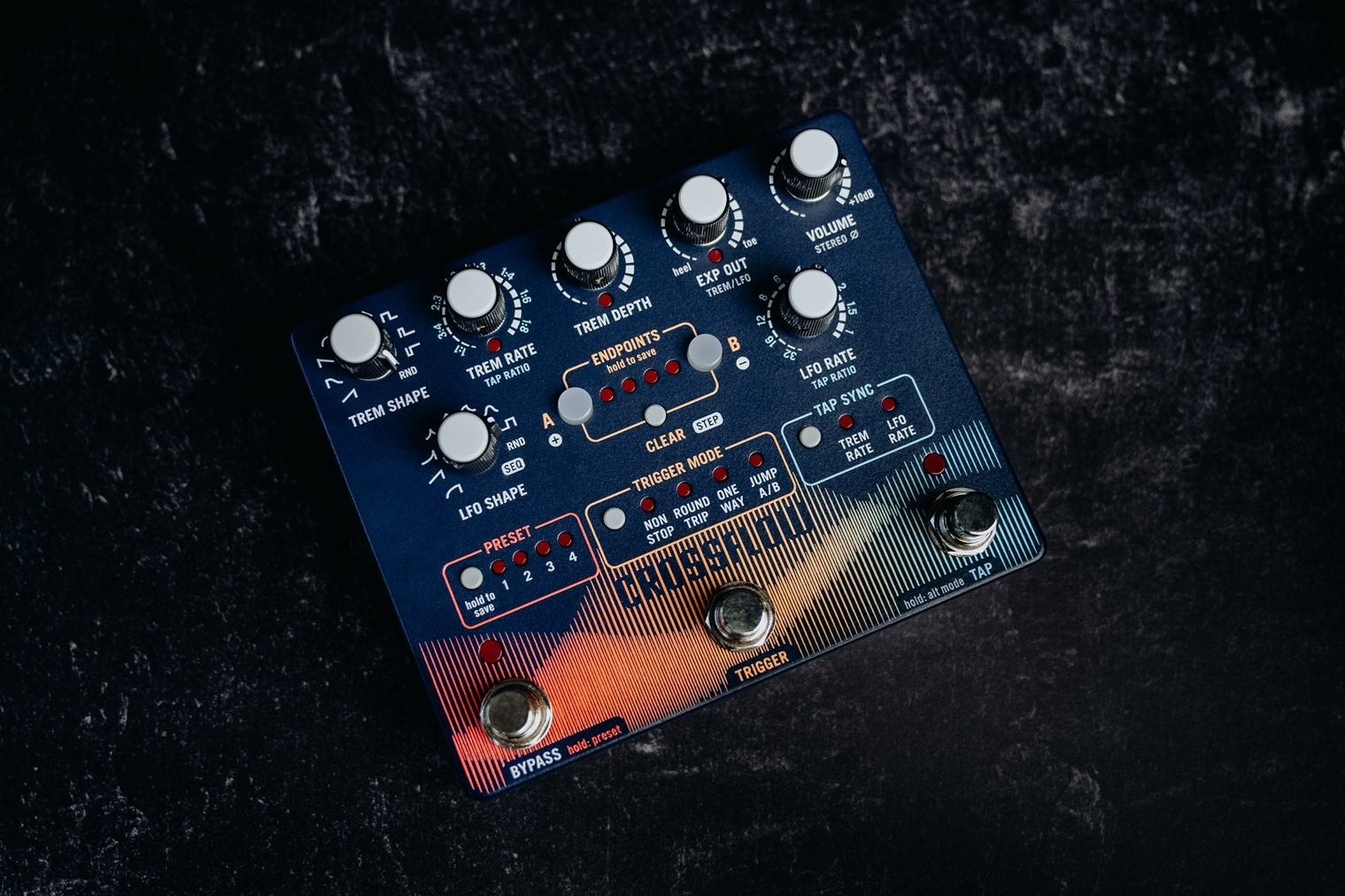

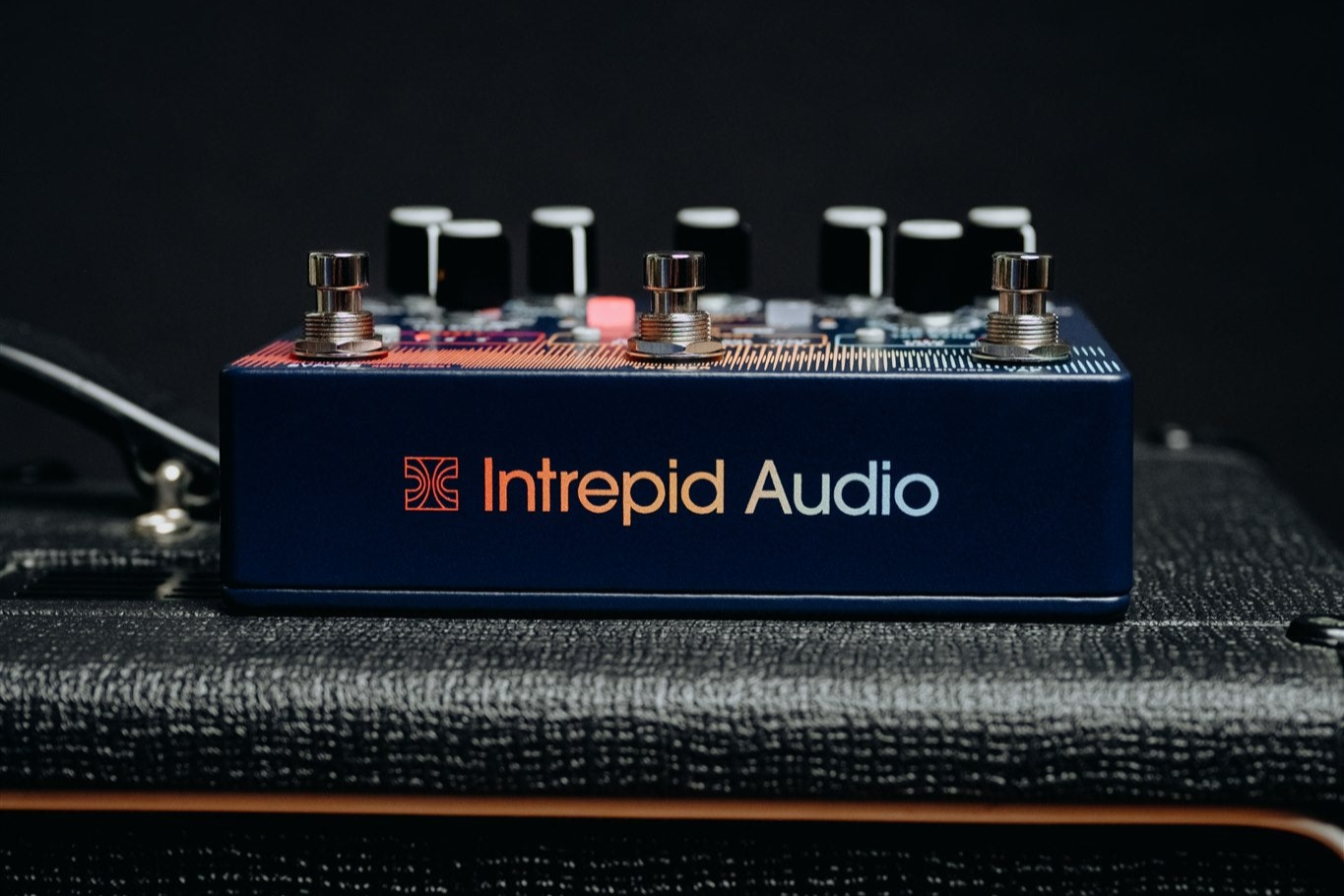

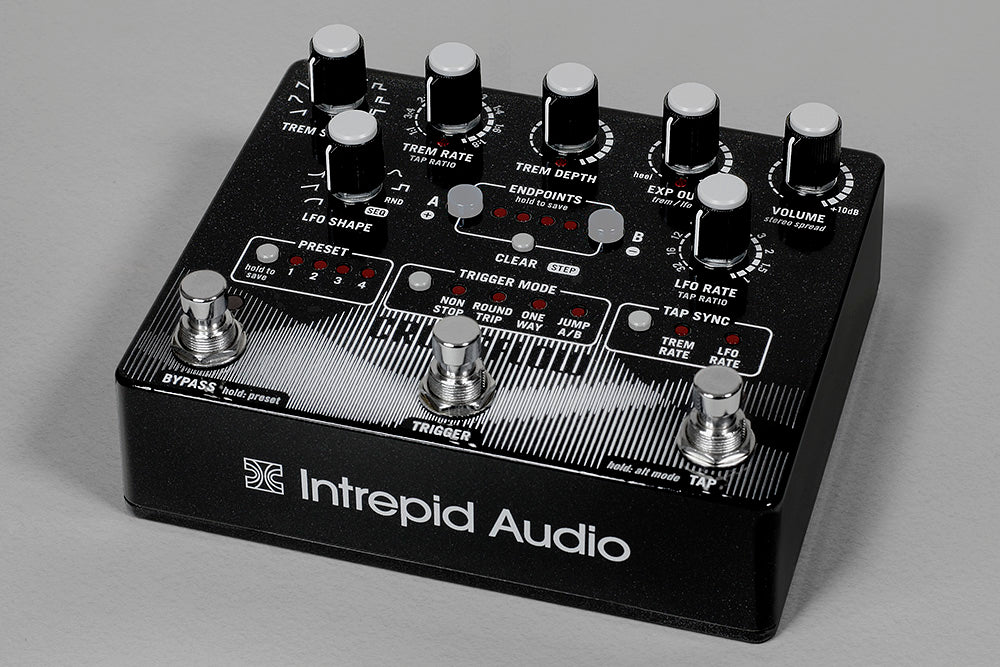

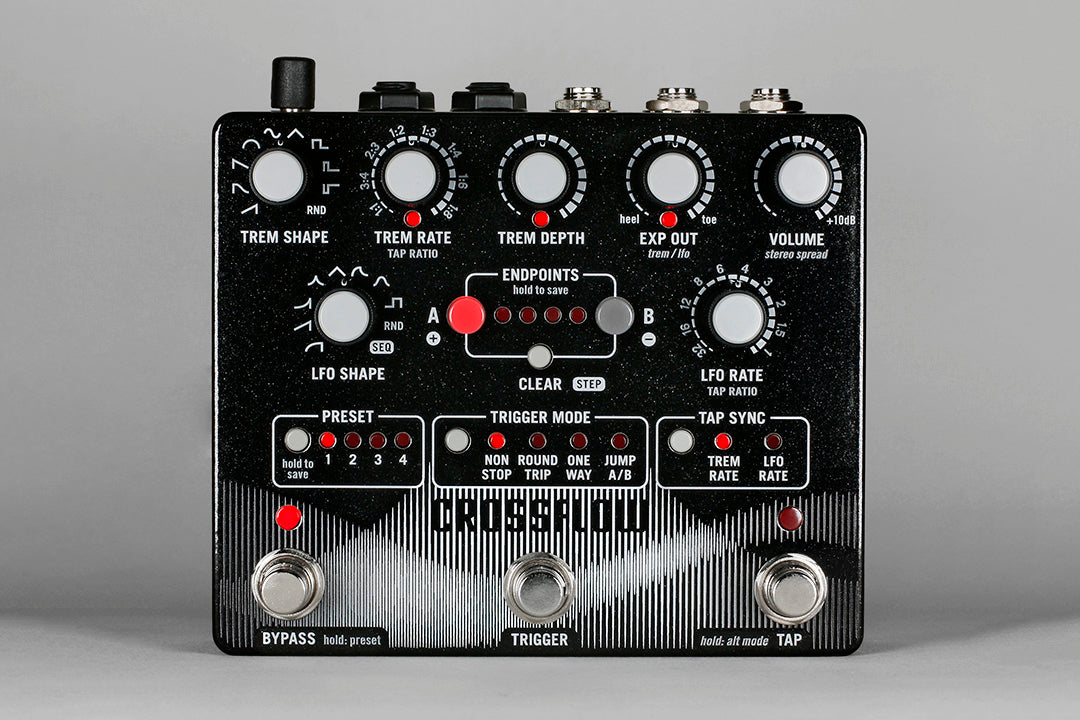

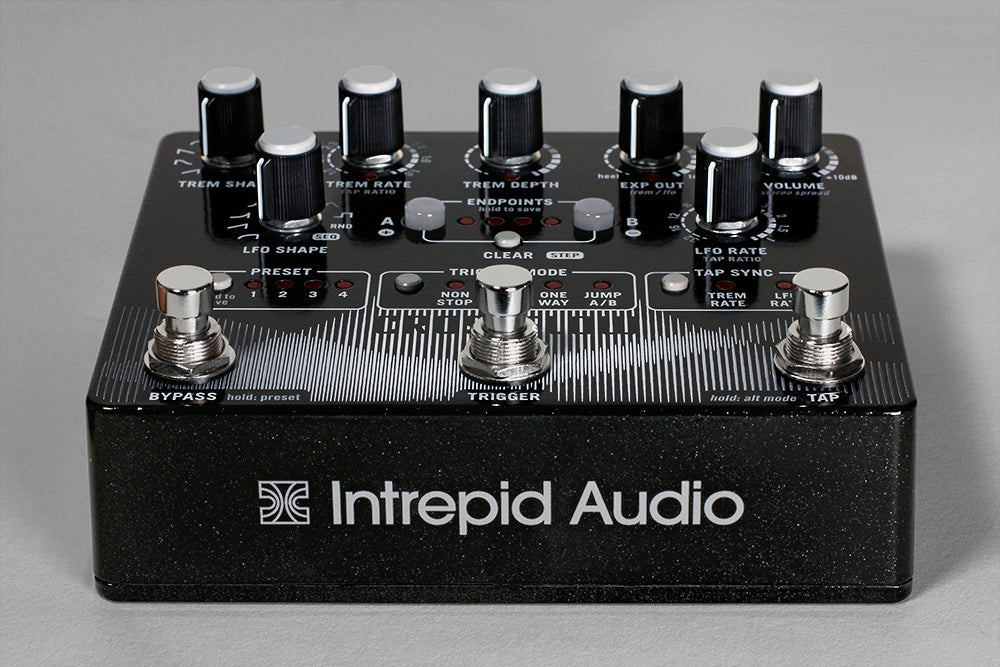

Crossflow

Crossflow

$379.00 USD
$379.00 USD
Sale Sold out

Orders will ship in 3 - 4 weeks.

Currently available to U.S. customers only.

Shipping

Orders will ship in 3 - 4 weeks from order date.
Currently available to U.S. customers only while we work toward reliable international shipping.

Warranty

One year warranty guarantee for original owner. View details here.

User Manual

Crossflow User Manual v1.1

View full details

Stereo tremolo

A versatile tremolo with 9 waveforms, tempo sync, and stereo spread for everything from classic pulses to hypnotic movement.

With intuitive A/B endpoints, you can morph your tremolo rate and depth between two settings with precise and performative control.

Expression controller

Crossflow doubles as a powerful expression controller. Connect any expression or CV capable device and output the onboard LFOs to add movement to other effects: filter sweeps, delay time, reverb depth, all flowing in time with the tremolo.

...and more

Includes an 8-step sequencer, random tremolo and LFO options, 4 onboard presets, 5 trigger modes for flexible control, tap sync, external clock sync, CV in/out, updatable firmware, and more.

Demos

  • Features

    • Analog signal path, digitally controlled
    • Tap tempo (with single tap to re-sync)
    • 4 Presets
    • 5 Trigger modes
    • 8-step sequencer of tremolo and/or expression output settings
    • Random tremolo
    • Random LFO (sample and hold)

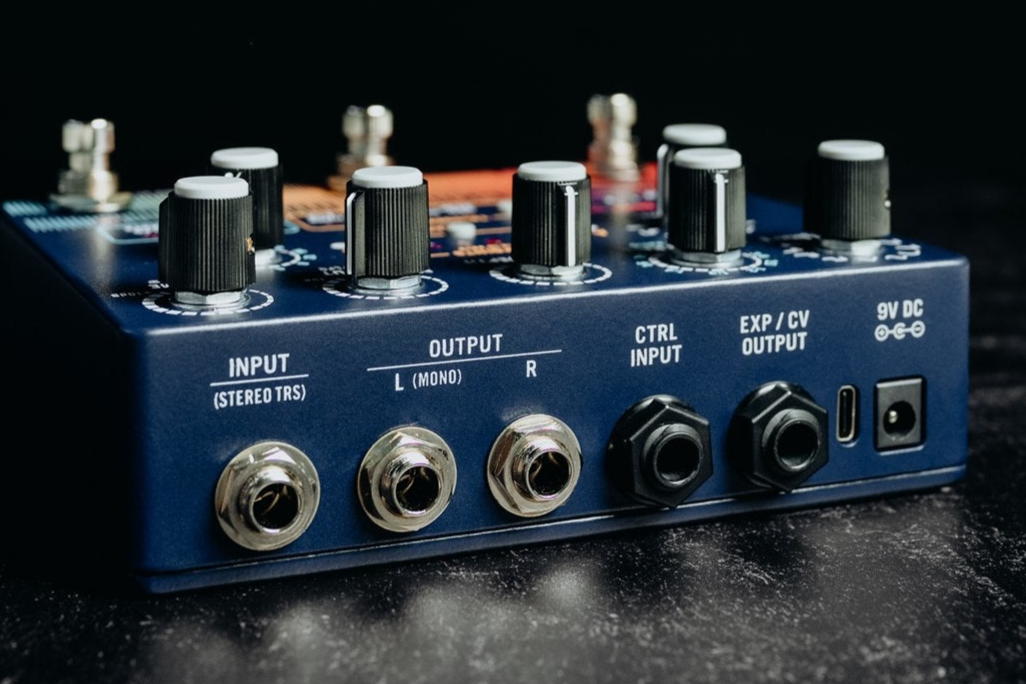

    • Stereo input, stereo output (SISO) or mono input, stereo output (MISO) options
    • Stereo spread
    • Expression/CV input and output
    • Accepts external clock with PPQN options (not MIDI)
    • An external switch can be assigned to 1 of 5 controls
    • Buffered or relay bypass
    • +10 dB clean boost
    • Firmware updates via USB drag and drop
    • Overvoltage and reverse voltage protection
    • Low output noise and distortion

  • Specs

    • Power supply: 9V DC, center negative, rated for at least 175 mA (not included)

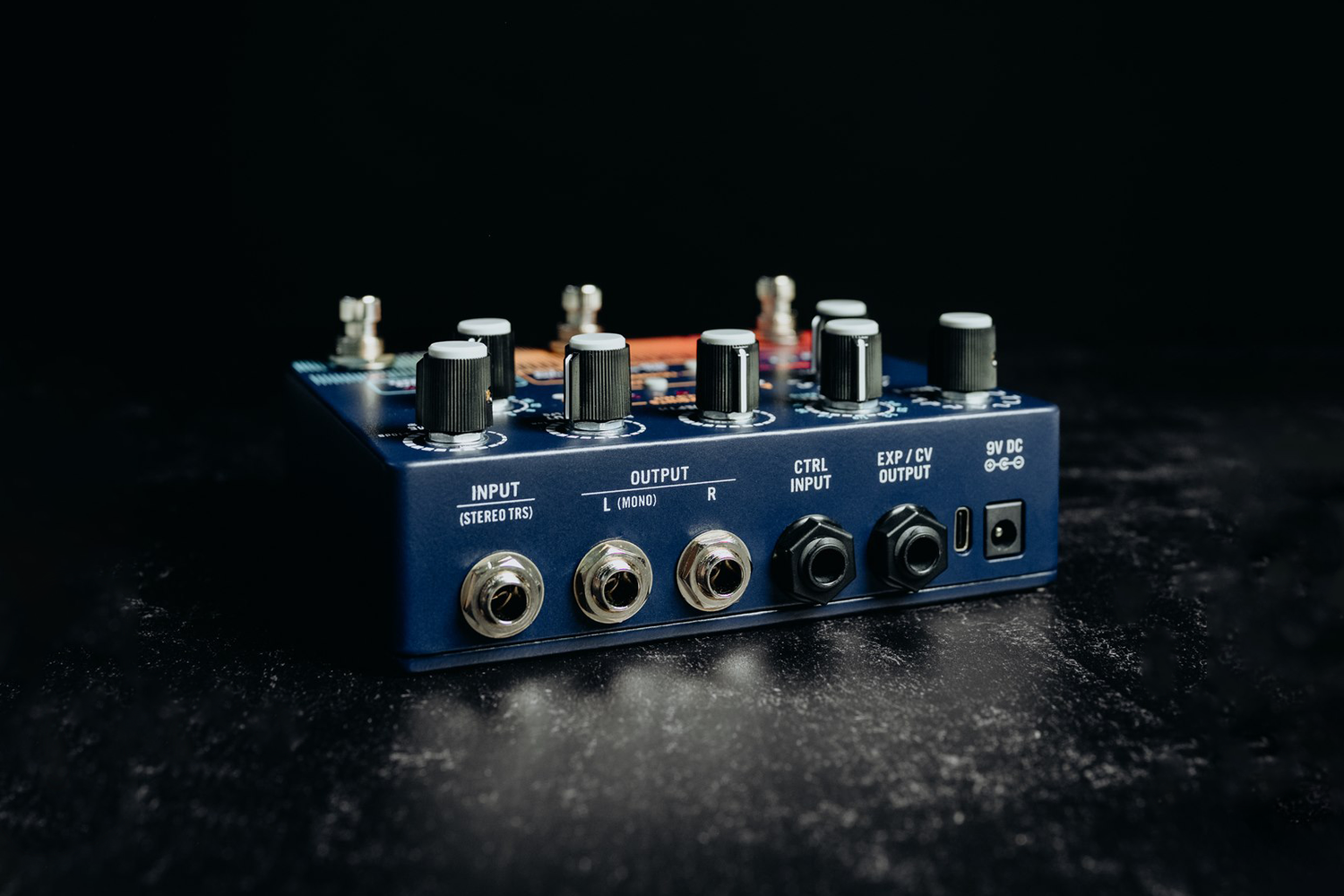

    • Audio input: TS mono or TRS stereo
    • Audio outputs: TS unbalanced or TRS impedance-balanced
    • Input impedance: 1 Meg ohm
    • Output impedance: 150 ohm
    • Volume: +10 dB at max
    • CV In / Out: 0 - 5V
    • Expression input reference voltage: 5V on ring
    • THD+N: 0.01%
    • Frequency response: +/- 0.5 dB, 20 Hz to 20 kHz
    • Dimensions: 5.72" x 4.94" x 2.2"
